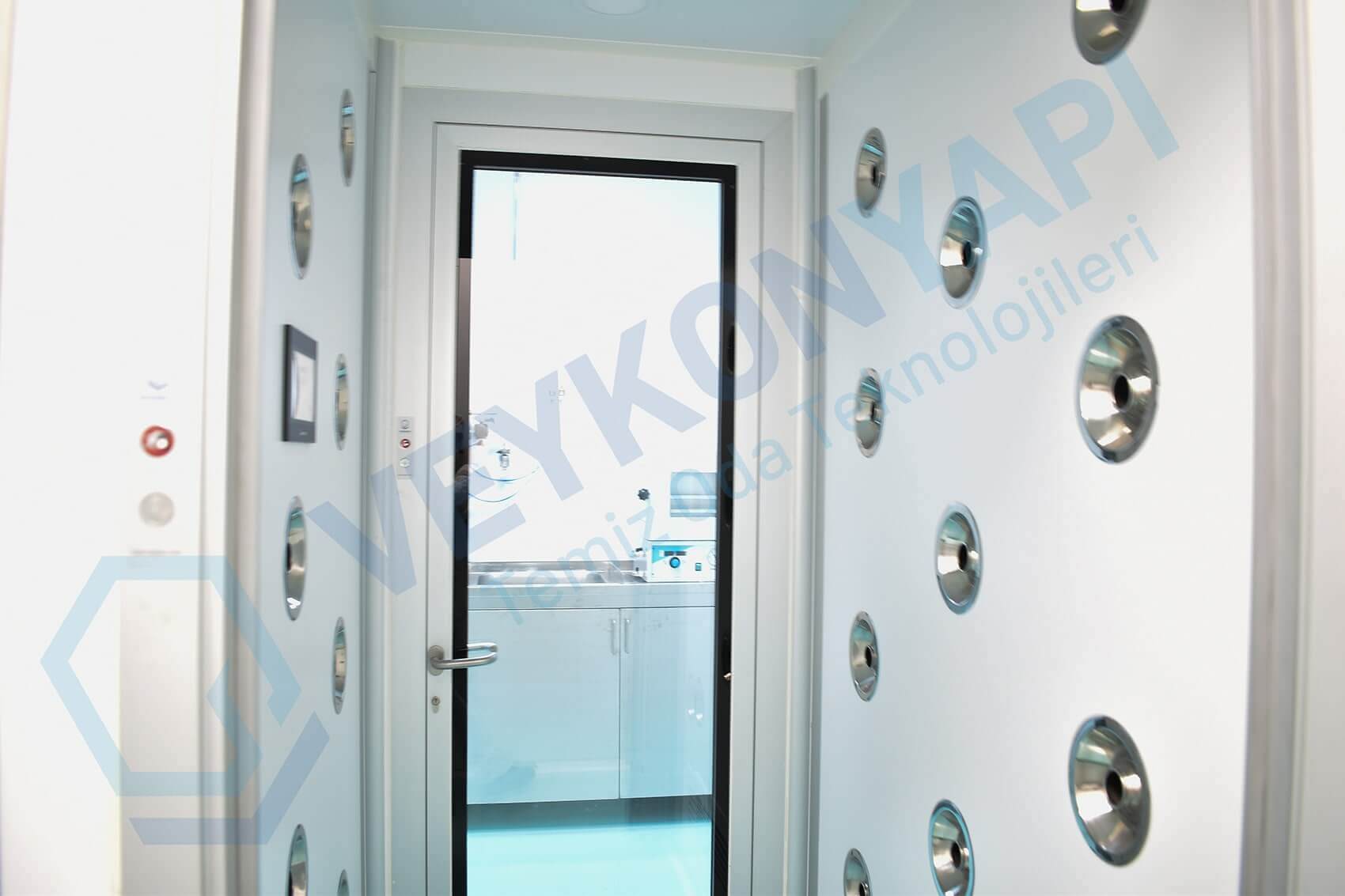

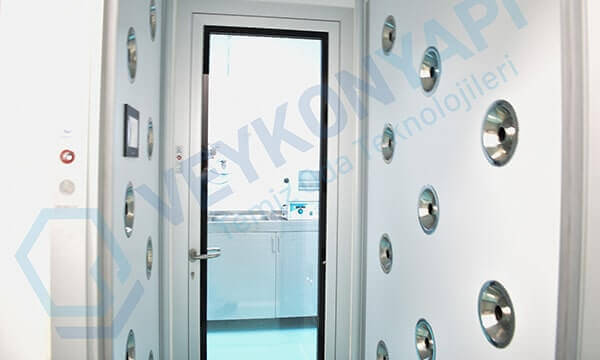

AIR SHOWER

    With precise air filtration and high-velocity compressed-air jets, the air shower is used to remove unwanted particles (hair, dust, soil, etc.) on people or materials. It is applied in all areas that concern human health and require a hygienic working environment. These units are also essential for facilities with production lines sensitive to dust and particles, playing a key role in preserving product quality.

Technical Specifications:
• Two-stage Air Filtration:
  * Inlet Filter G2 Coarse Filter – average dust capture efficiency 65 – 80 %
  * Discharge Filter HEPA Filter (H14 Class):
    Minimum efficiency @0.3 μm 99.999 %, Most Penetrating Particle Size (MPPS) 99.995 %

• Interior & Exterior Surface: HPL panel; optionally AISI 304 stainless steel
• Air Nozzles: Adjustable, stainless steel
• Air Velocity: 22 – 26 m/s
• Interlock Locking System
• Doors: Tempered glass
• Magnetic Door Locks
• MCC Panel, Electrical & Automation Wiring, Automation System
• Touch-Screen Automation Control Panel
• Automation System showing filter contamination and discharge pressure
• Indicator Light System (inside/outside the cabin)
• Emergency Panic Button / Siren System
• Custom design possible in requested dimensions.
